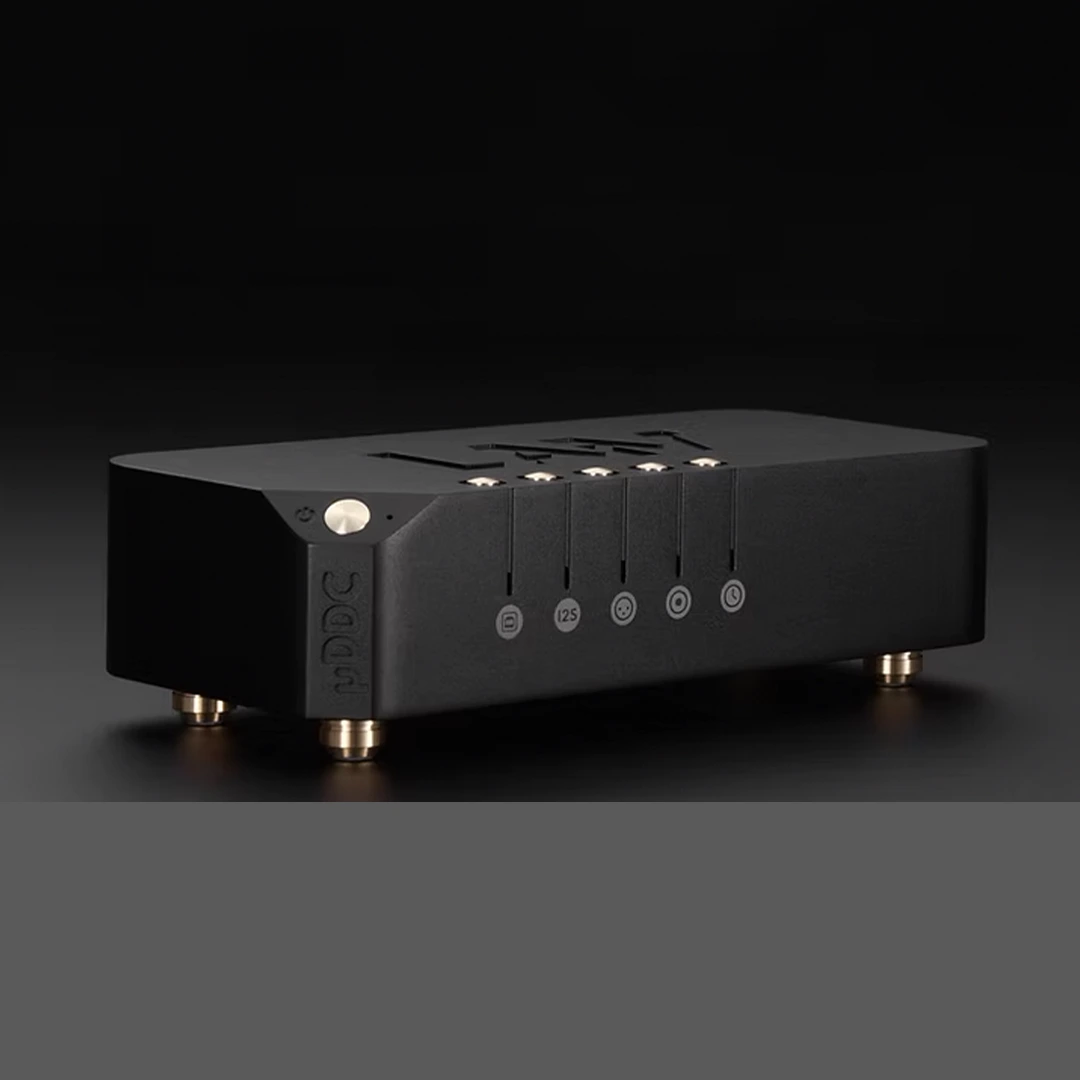

Harmony µDDC

Specifications

Power button:Short press to toggle power on / standby
Input buttons: Select inputs
Clock button:Short press to toggle between internal clock /external clock
Chip: Intel®,Altera®,Cyclone® FPGA
Clock:Precision Ultra-Low Phase Noise Femto Clock
Digital Inputs:
1 x USB
1 x I2S
1 x AES/EBU
1 x Coaxial
1 x 10MHz Clock Input, 50Ω, Square/Sine wave

Digital Outputs:1 x I2S
Supported Formats:USB
PCM: 44.1kHz – 768kHz
DSD: DSD64 – DSD512
PCM:44.1kHz – 768kHz
DSD:DSD64 – DSD512
Coaxial:
PCM: 44.1kHz – 192kHz
DSD: DSD64 via DoP only
Frequency Response:15Hz – 80kHz, within ± 0.5 dB
THD+N: 0.000005%
Crosstalk: ≤ -165 dB
Signal to Noise Ratio (SNR): ≥ 145 dB

Features:
Compact & Modular Design
Precision Ultra-Low Phase Noise Femto Clock
Proprietary FIFO Buffer and Reclocking Technology
Versatile I2S Inputs & Galvanically isolated I²S Outputs
Support External 10MHz Master Clock Input

Controls:Front panel
Power:5VDC / 2A, DC 5.5/2.1 mm female.
In the Box:Welcome card with Quick Start guide
Harmony μDDC
Power adapter with interchangeable plugs
