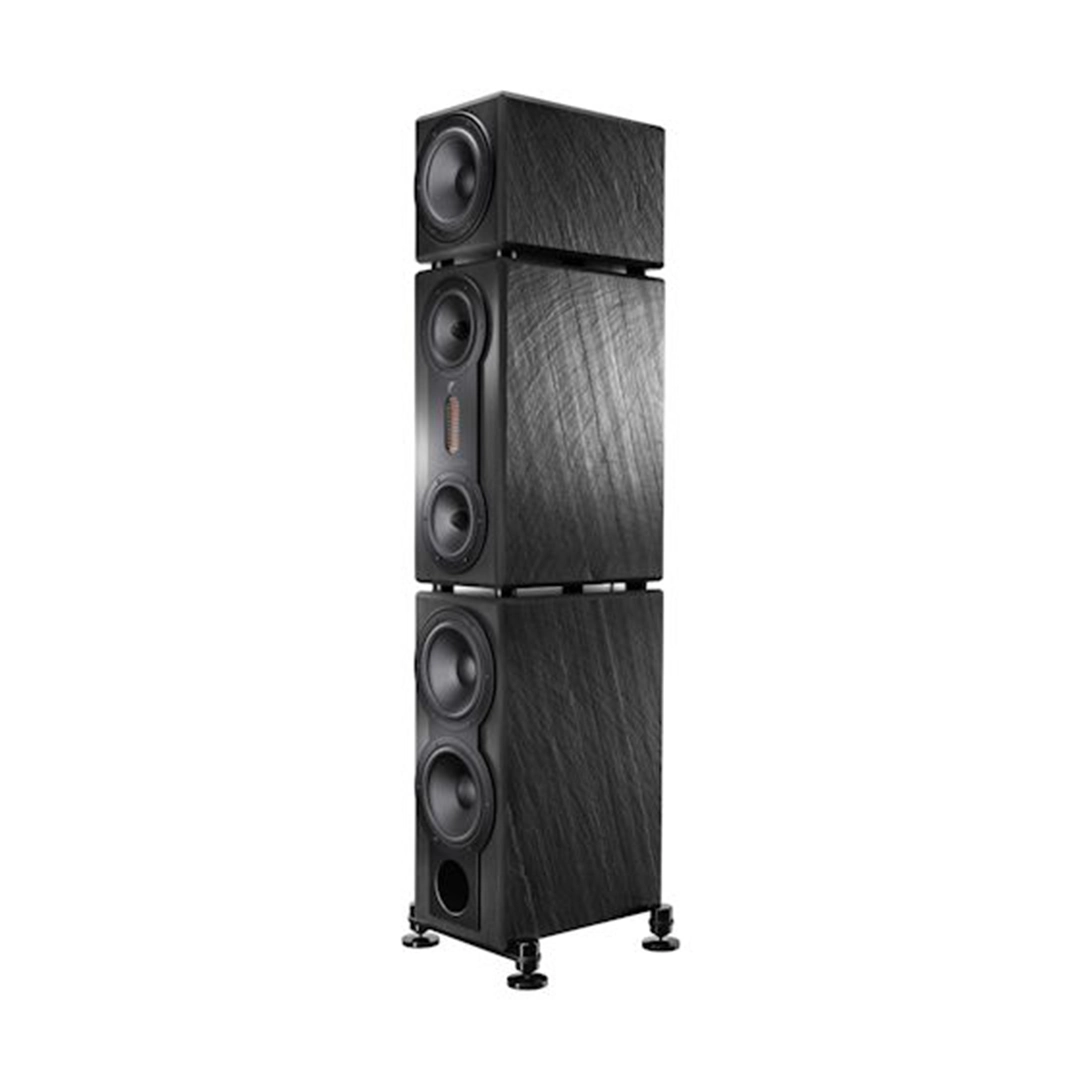

SN/SL 770.1AMT

Specifications

Frequency response (+/- 3 dB): 24 – 27.000 Hz
Impedance:4 ohms
Sensitivity:92,5 dB (1 W / 1 m)
Max. acoustic pressure:115 dB
Frequency dividing network:1st and 2nd order phase and impedance corrected filters
Function principle: bass reflex
Subwoofer system: two 220 mm FISCHER & FISCHER cone speakers with carbon paper foam sandwich membrane
Bass system: one 220 mm FISCHER & FISCHER cone speaker with carbon paper foam sandwich membrane

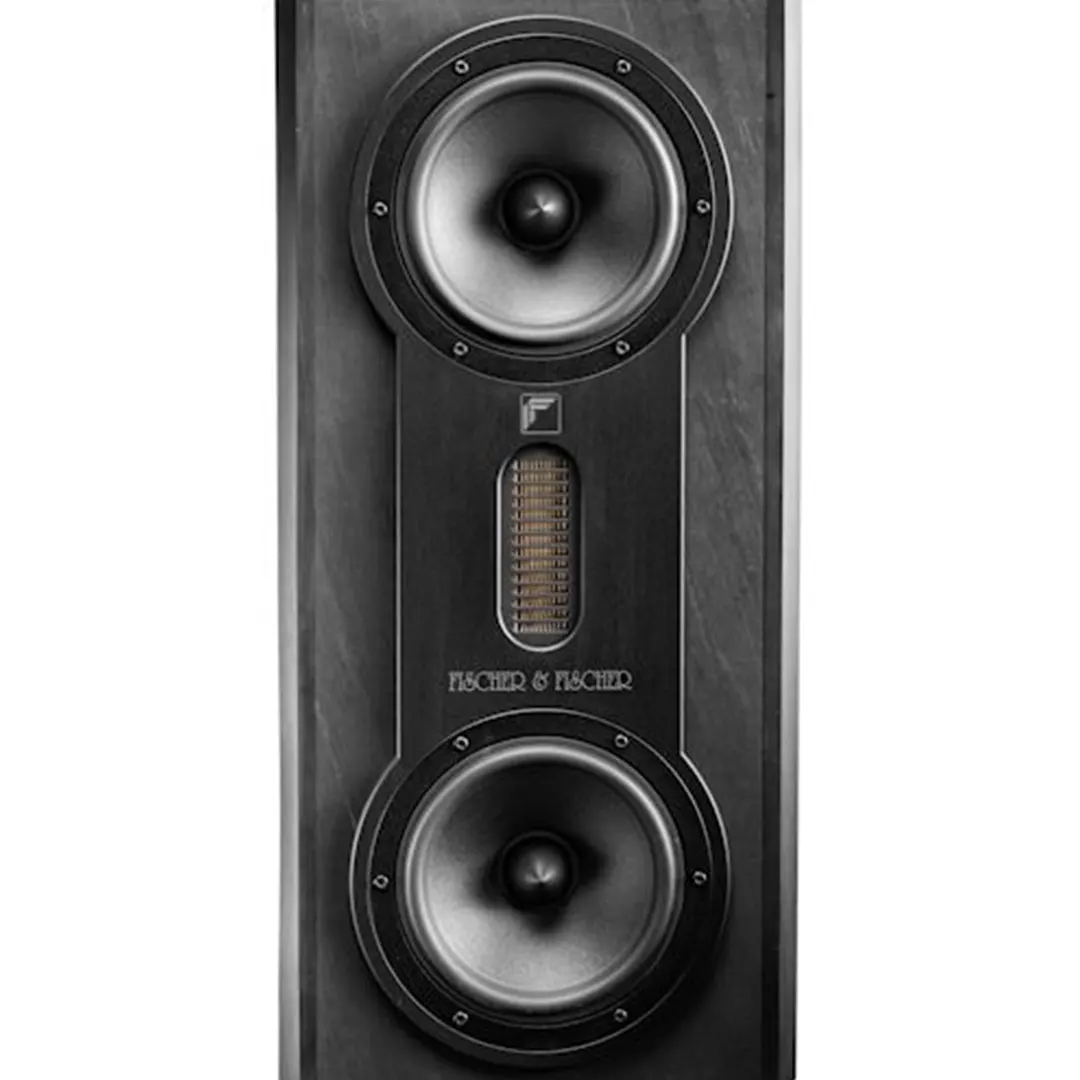

Midrange system: two 180 mm FISCHER & FISCHER cone speakers with carbonized paper, carbon foil sandwich membrane and aluminium phaseplug
Tweeter: one FISCHER & FISCHER-Air Motion Transformer (AMT), special custom made by Mundorf

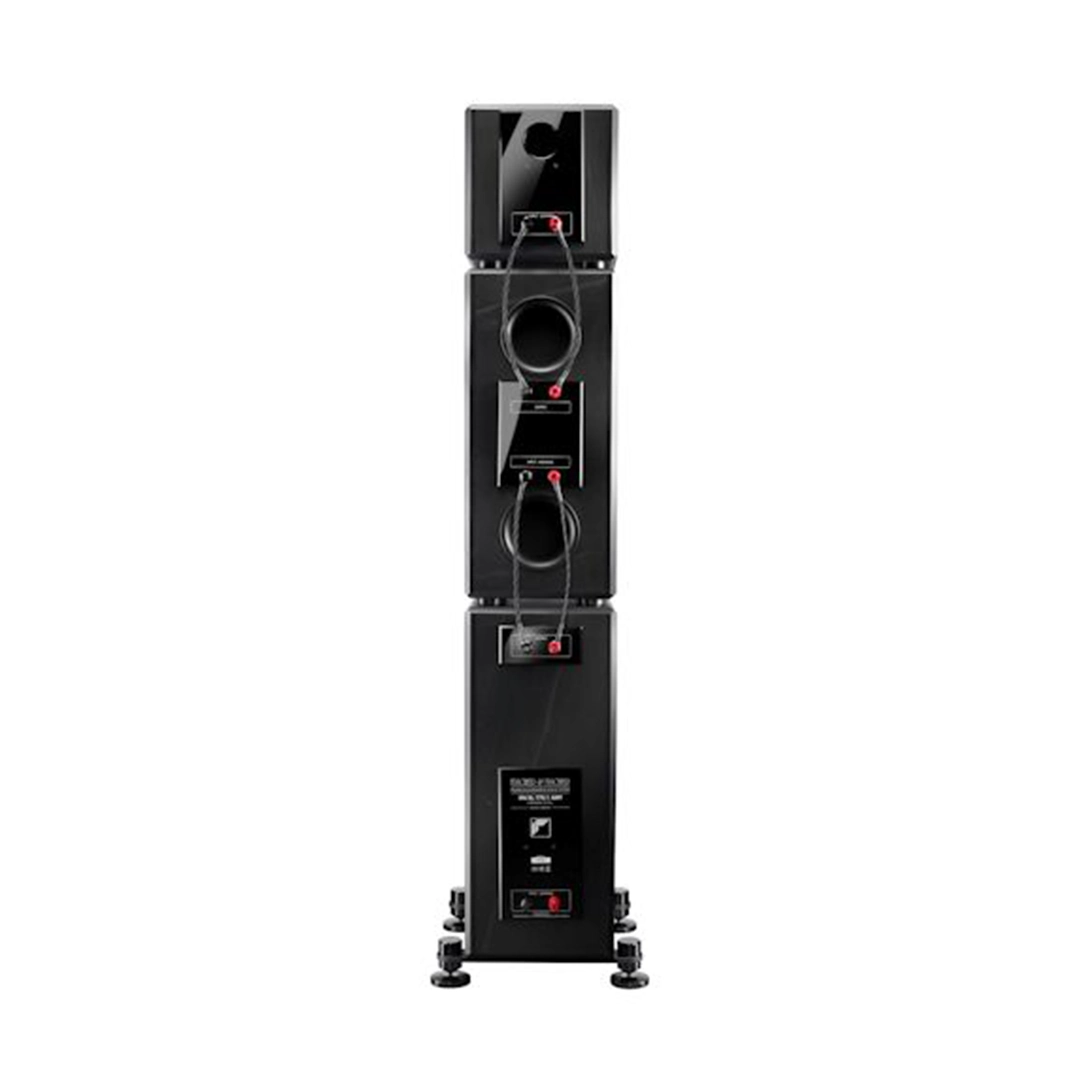

Connecting terminal: Tri-Wiring, with pure silver bridges, 63 A connecting terminals, rhodium plated
Cabinet material:20 / 23 mm thick low-resonance natural slate
Floor system: aluminium, levellable
Dimensions slate cabinet (H x W x D):1550 x 275 x 420 mm
All over dimensions incl. floor system (H x W x D):1610 x 380 x 475 mm
Weight:159 kg
