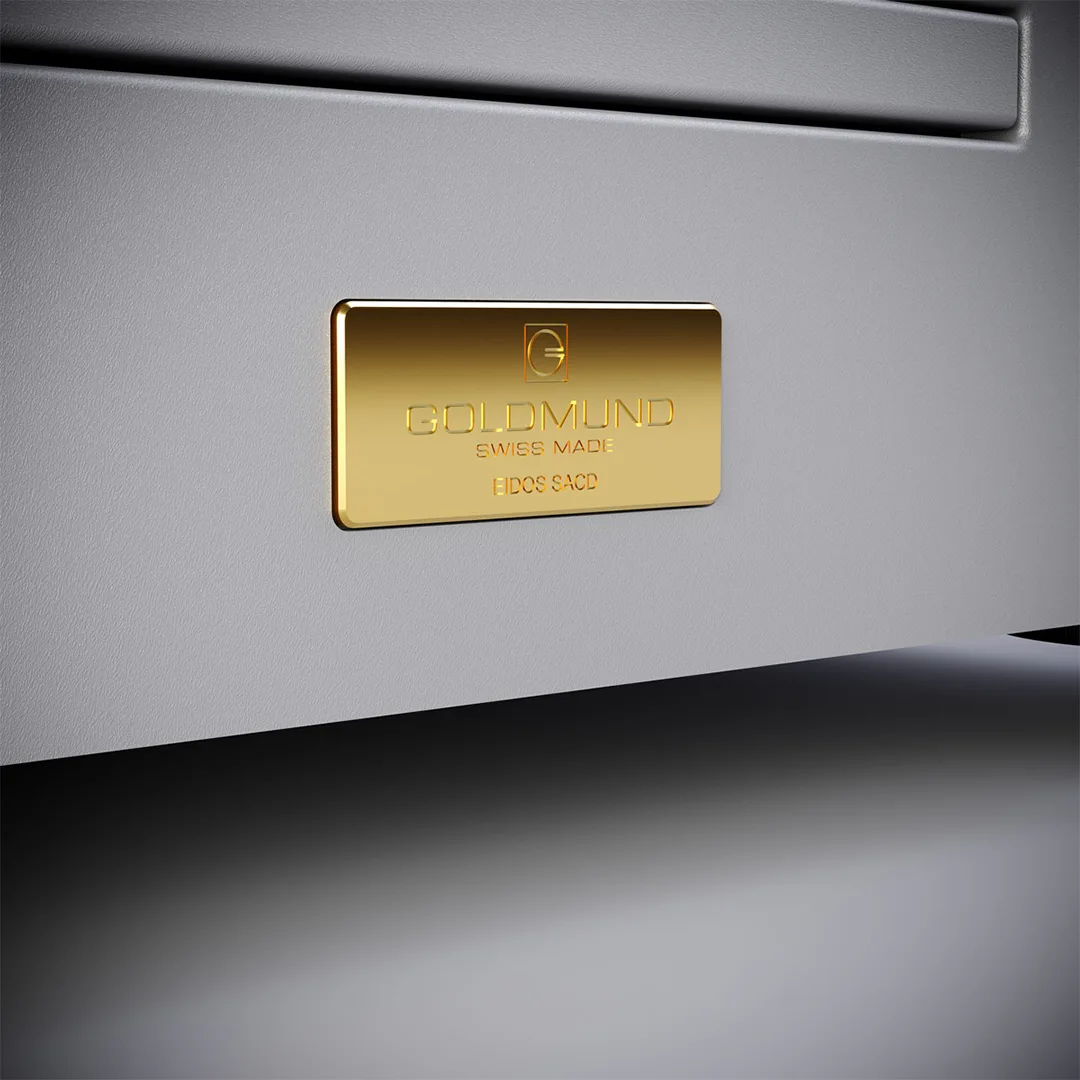

EIDOS SACD SACD PLAYER

Specifications

COMPATIBILITY: SACD/CD/CD-R/CD-RW/DVD-R*/-RW*/+R*/+RW* (*Audio data file only)

OUTPUTS:
Dedicated Stereo Analog Audio: XLR balanced, RCA unbalanced.
S/ PDIF/ AES EBU/ Optical Digital Audio: up to 384 kHz PCM.
Maximum output level XLR balanced: 4V RMS (standard); 8V RMS (High)
Maximum output level RCA unbalanced: 2V RMS (standard); 4V RMS (High)

INPUTS
USB: up to 384 kHz PCM, up to 22’579.2 MHz DSD

AUDIO CHARACTERISTICS:
Frequency range: 10Hz – 20 kHz, 5 Hz (-0.15 dB), 24 kHz (-0.45 dB),
48kHz (-1.4 dB), 96 kHz (-4.3dB)
Signal-to-Noise Ratio: >128dB.
THD+N: < 0.00018% (Stereo Output)
Dynamic range: > 128dB
Crosstalk: < 120dB
Standard Analog Output: 2V
High Analog Output: 4V

MECHANISM:
Based on D&M SACD mechanism, integrated into the Goldmund mechanical
grounding system to evacuate vibrations and Goldmund damper to increase
rigidity of the loader mechanism for sound transparency.

POWER SUPPLY:
Nominal line voltage: 117 or 234V (switchable)
Fuse 1A for 110V and 220V
Input voltage range: +/- 10%
Power Consumption: 40W

SIZE & WEIGHT:
44 W x 18.3 H x 37 D (cm)
17.3 W x 7.1 H x 14.6 D (inch)
20.6 kg
