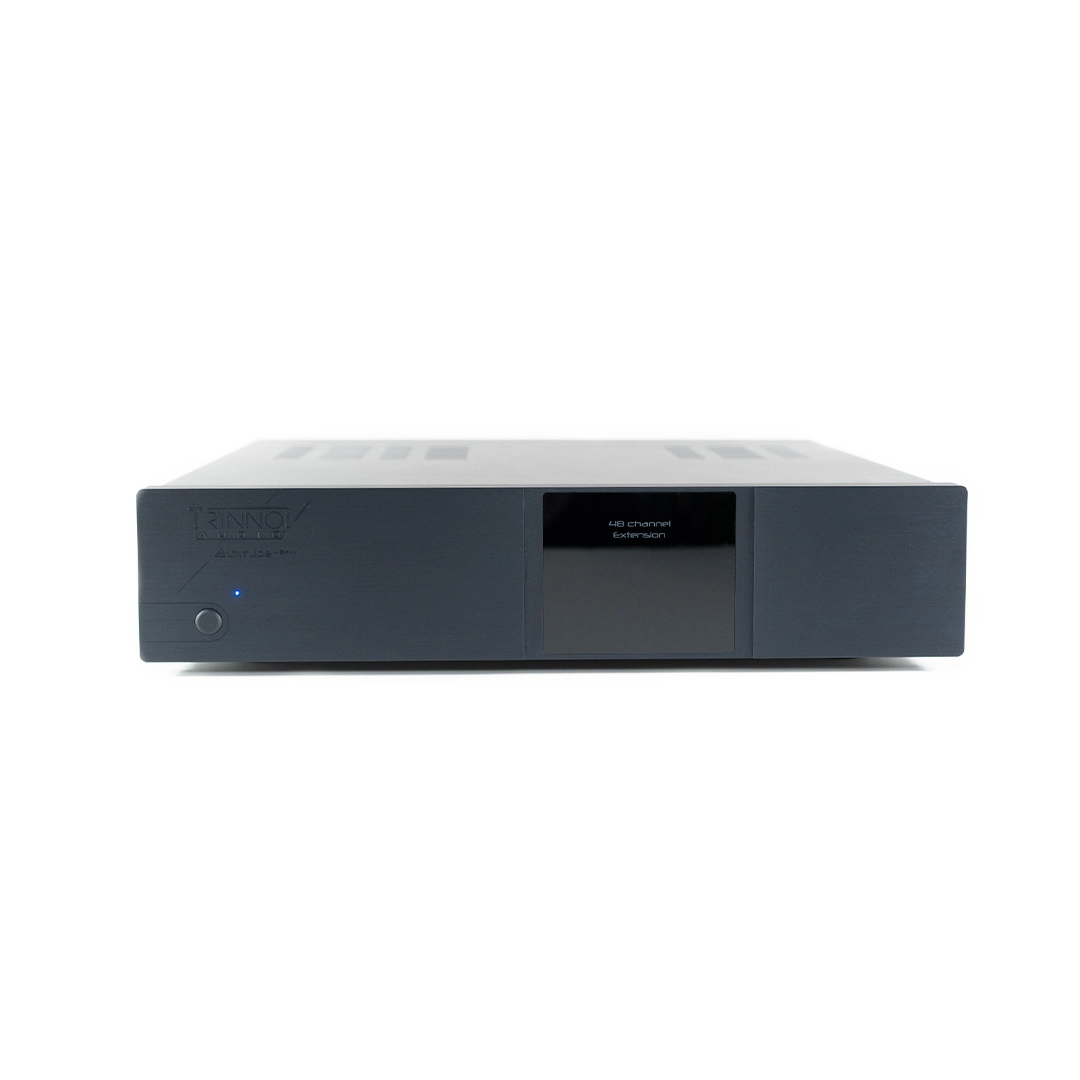

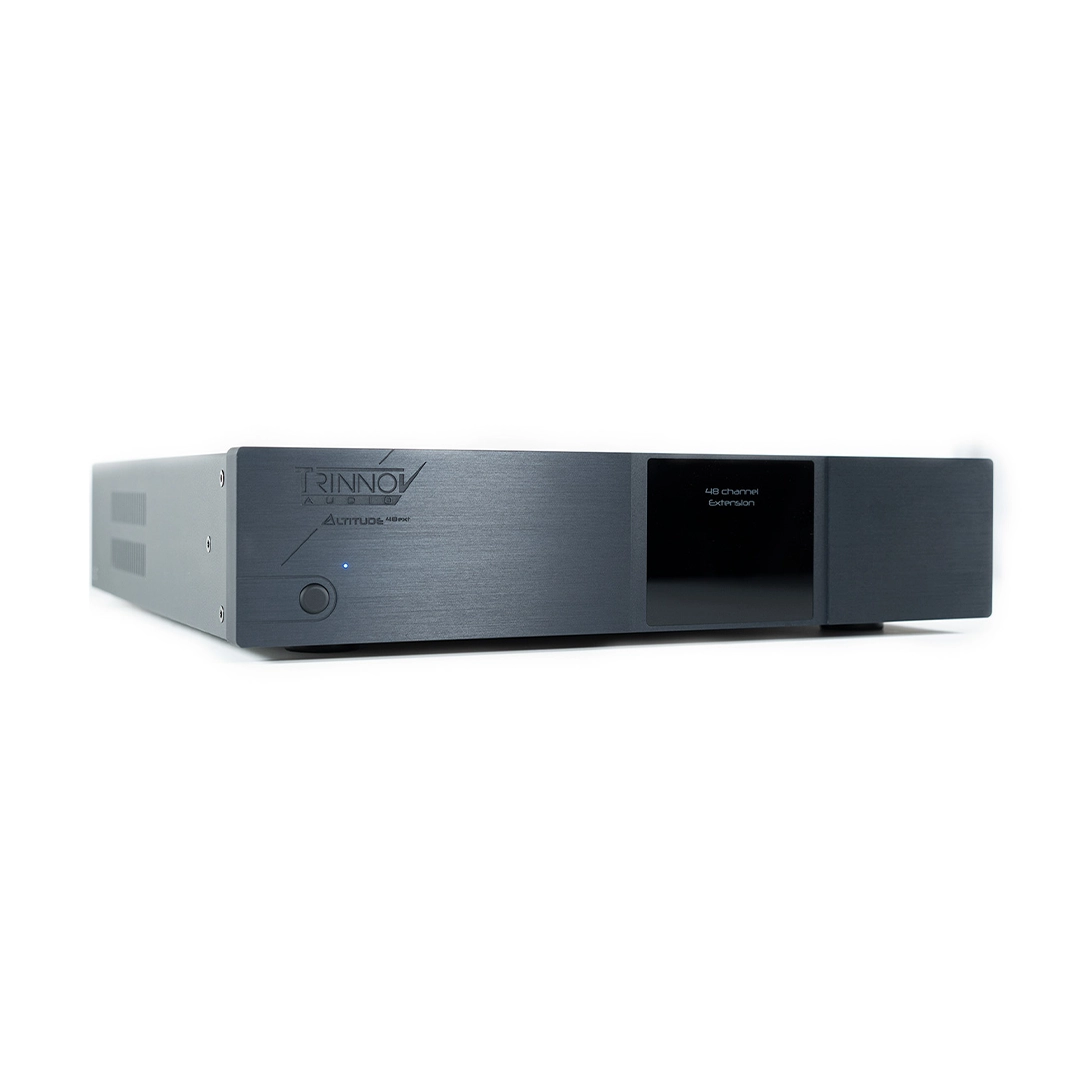

Altitude48ext

Specifications

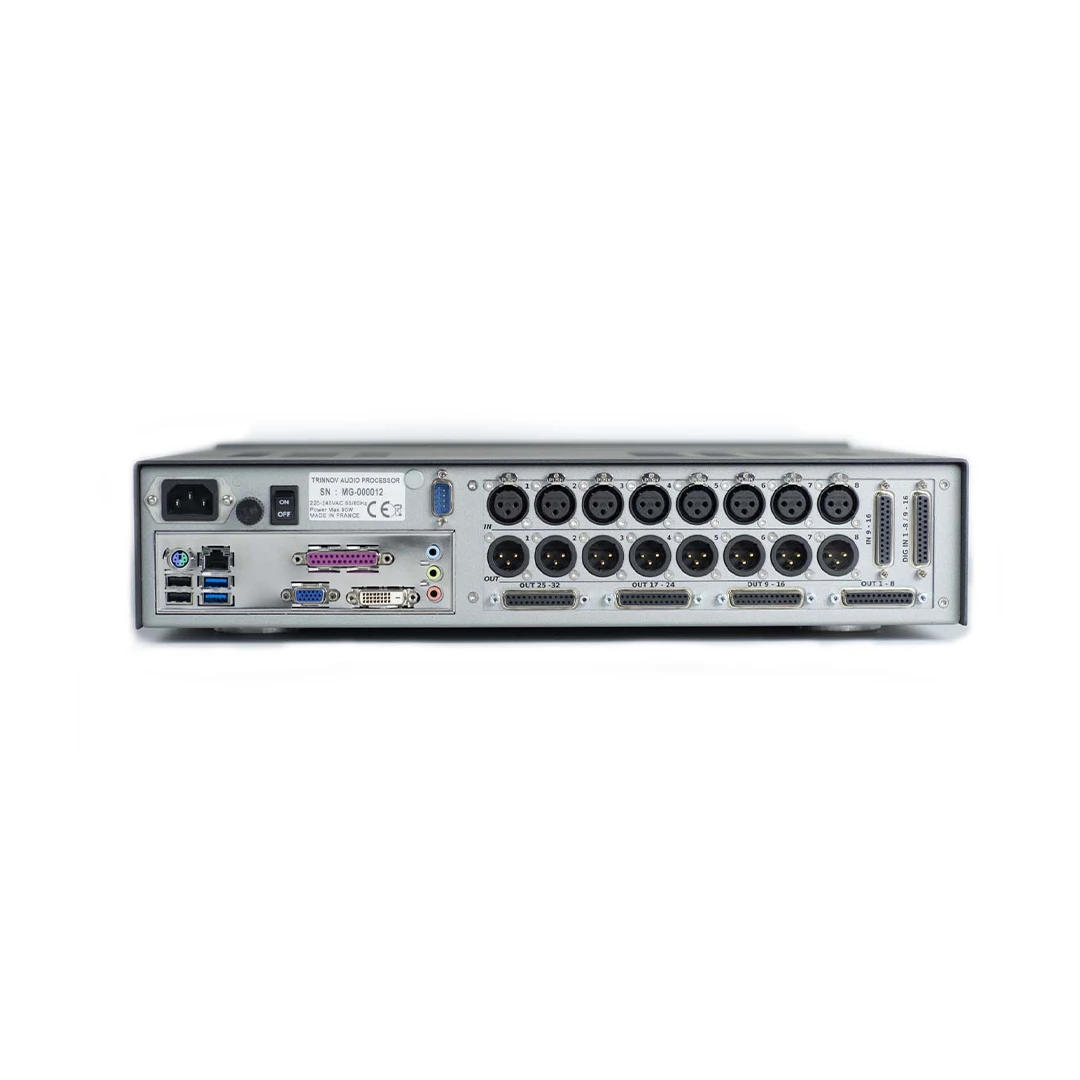

Digital Inputs (DB25):x1 (16 channels)
Balanced Inputs (XLR):x8
Balanced Outputs (XLR):x8
Balanced Outputs (DB25):x4 (32 Channels)
Input Impedance:20k Ohms
Analogue DB25 Wiring: TASCAM Pinout
ADC Resolution / Sampling Rate:24 bits / 48 kHz
DAC Resolution / Sampling Rate:24 bits / 48 kHz
A/D Signal-To-Noise Ratio:119 dB (A-Weighted)
D/A Signal-To-Noise Ratio:118 dB (A-Weighted)
Reference Level:+18dBu @ 0dBFS (Balanced)
Clock / Jitter: attenuation > 50 dB above 100Hz
Processor: Intel Multicore CPU
Data Precision:64 bits, floating point
Cooling System: Custom heat sinks & silent fans
Safety Components: AntiPop relays on each output
Power Requirement:240V AC / 50-60 Hz. Option: 130V AC
Power consumption:90W
Mains fuse:1A slow blow
Internal PSUs: Separated supplies for Audio and Processing
Dimensions (W x H x D) mm:442 x 102 x 438
Dimensions (W x H x D) inches:17 1/2″ x 4″ x 17 1/4 ”
Shipping box dimensions (W x H x D) cm:74 x 59 x 28
Weight:10.2kg / 22.5lbs
Shipping weight / volume:15kg / 0.131 M3
Rackmounting:2U – Rack Ears Included
