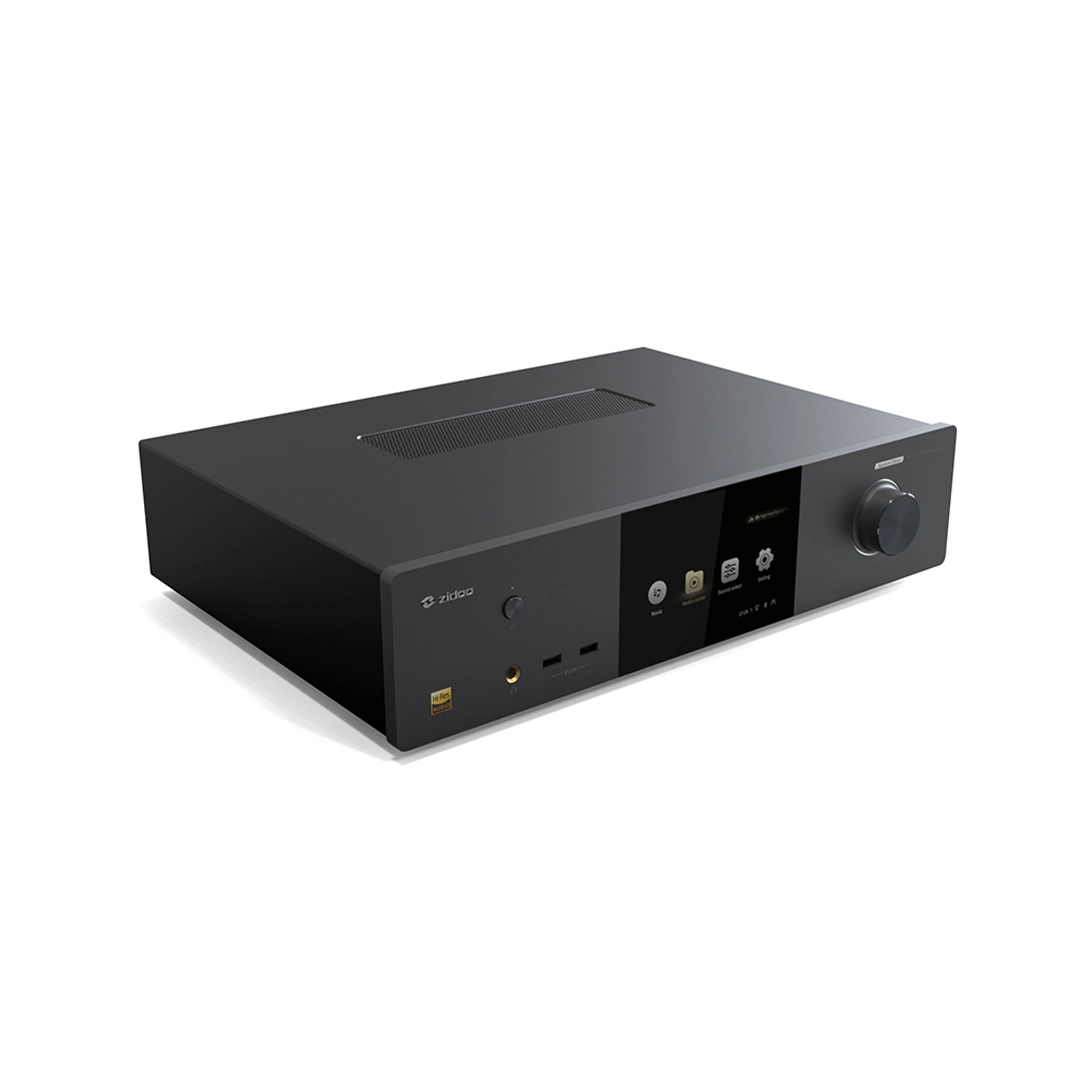

4K Hi-End Media player NEO α

Specifications

Model: NEO α(Alpha)
Display:5-inch OLED HD touch screen
Chassis: Aviation aluminum alloy
CPU: Realtek RTD1619DR ARM Cortex-A55(hexa-core)
GPU:ARM Mali-G51 MP3
DAC:ESS 9038Pro
Audio Processor: XMOS XU216
Internal SSD:512G SSD (M.2 SATA 3.0 2280 interface protocol, up to 1TB)
SATA: Internal SATA3.0 HDD bay*1 (support 2.5/3.5 inch HDD，hard drives are not included)
Wi-Fi:2.4G+5G dual band WiFi, 802.11 a/b/g/n/AC 2T2R MIMO 867Mbps
Ethernet:RJ-45(10/100/1000Mbps)
HDMI Main Output: HDMI 2.0a support 4K@60fps/12Bit/HDR/BT2020/YCbCr 4:4:4 video ouput
Support audio passthrough
HDMI DSD Audio Output: HDMI 1.4
Music: support DSD 64 2CH/5.1CH(DSD Native)
Movie: support audio passthrough
Video Decoding:4K@60p HEVC/H.265 12Bit HDR10, HDR10+, Dolby Vision
Audio Decoding: Support true-hd HD audio passthrough, stereo PCM decoding
DAC Audio Decoding: Support up to stereo DSD512, PCM 768KHz 32Bit, MQA
Bluetooth Audio Input: Qualcomm QCC5125 bluetooth module(BT5.0)
Support audio protocols such as SBC/AAC/aptX/aptX LL/aptX HD/LDAC
USB Audio Input:USB Audio compatible system: Windows（7，10）、Mac、Android、iOS
Support up to stereo DSD512, PCM 768KHz 32Bit, MQA
Digital Audio Input:USB DAC input, Coaxial input, Optical input, Bluetooth audio input
Digital Audio Output: Optical output, HDMI output, USB Audio output, Bluetooth audio output
Analog Audio Output: Preamplifier output: XLR(balanced), RCA
Headphone amplifier output: 6.35mm single end
USB:USB3.0*2，USB2.0*2
Control Methods: Remote control, Mobile APP control, Touch screen control, TCP/IP control（WOL), RS232 serial port control, IR IN interface control
Headphone Impedance:16-300Ω (loe-gain mode: 16-32Ω/high-gain mode: 32-300Ω)
XLR(balanced) Output:
Output Level(Vrms): 4.3 Vrms
THD+N: -115dB（0.000167%@1kHz）
Noise: less than 2uVrms
SNR: 127dB@1kHz
frequency response: ±0.25dB(20Hz-20kHz)
CROSSTALK: -130dB@1kHz
DNR: 127dB@1kHz

RCA(single-ended) Output:
Output Level(Vrms): 2.1 Vrms
THD+N: -114dB(0.000185%@1kHz)
Noise: less than 2uVrms
SNR: 124dB@1kHz
frequency response: ±0.25dB(20Hz-20kHz)
CROSSTALK: -126dB@1kHz
DNR: 125dB@1kHz

Headphone 6.35mm Single-Ended Output(low-gain mode)
Output Level(Vrms): 1.1 Vrms
THD+N: -109dB(0.00035%@1kHz)
Noise: less than 2uVrms
SNR: 123dB@1kHz
frequency response: ±0.25dB(20Hz-20kHz)
CROSSTALK: -123dB@1kHz
DNR: 123dB@1kHz
Max Power: 76mW(16Ω)/38mW(32Ω)

Headphone 6.35mm Single-Ended Output(high-gain mode)
Output Level(Vrms): 3.4 Vrms
THD+N: -111dB(0.00035%@1kHz)
Noise: less than 2uVrms
SNR: 124dB@1kHz
frequency response: ±0.25dB(20Hz-20kHz)
CROSSTALK: -123dB@1kHz
DNR: 124dB@1kHz
Max Power: 361mW(32Ω)/39mW(300Ω)

Power Supply:AC 110~240V 50/60Hz
Dimensions:430mm(W)*300mm(D)*105mm(H)
Packing List:Remote control*1, Power cable*1, Hard drive fixing screws*4, Screwdriver*1, User Manual*1
